THE POWERFUL
FOR STATIC IMPULSE TESTING
GH 4000 B/05-21 / GH 4000 B/05-21 PLUS
APPLICATION
IMPULSE TESTS
ACCORDING TO DIN EN ISO
6803

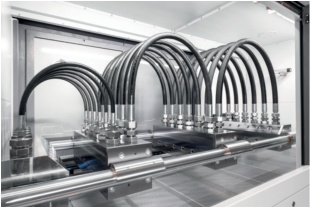

with extended test chamber
Test pressure
1.500 bar
/ 2.000 bar
Test performance
up to 800 cm³
Isobaric test
up to 18 test items simultaneous
Nomina
l hose diameter
up to DN 76 (3‘‘) – 210
bar
Connected load
60 kW / 70 kW
Dimensions (L/W/H)
400
0 x 1450 x 2100 mm
Weight
4.600 kg
Optional upgrade
DI
N
EN ISO
6772
(Peak curv
e),
Impulse testing starting at 10 ba
r
